Conical Spring Mechanical Seals

Conical Mechanical Seal - we are biggest Exporter, Manufacturer, and Supplier of Conical Spring Mechanical Seal supplier in India. With the valuable assistance of skilled team of professionals, we are engaged in offering an extensive range of high-quality Conical Spring Mechanical Seals.

The conical helical spring can be fitted easily by pushing on the shaft and twisting as the spring winding. So, the spring diameter enlarges easily to make easy fitting. One can judge the direction of the rotation from the drive end of the shaft.

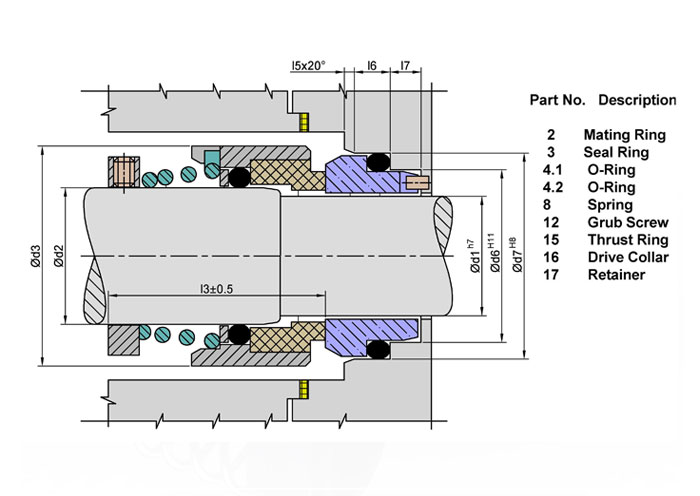

Conical Spring Unbalanced Seals
(TYPE 026U )

"Conical Spring Mechanical Seals" are extremly rugged & reliable & therefore used in wide range of sealing applications. these seals have verry few parts & hence can be easily assembled or dismantled. The seals arrangement does not warrant any modification even in case of conversion from gland packing. The compact design eliminates the requirement of extra radial & axial space for its installation.

Chemical and pharmaceutical industry, Petrochemical Industry, Pulp and paper industry, Water and waste water technology, Building services industry, Food and beverage industry, Water and sewage water pumps

  • Pressure : 10 bars (Max)
  • Temperature : (-)20c to (+)180c
  • Speed : 2900 rpm (Max)
  • Sizes : 10 mm to 100 mm
  • Seal Ring Face : carbon, SIC, TC
  • Mating Ring Face : SIC, TC
  • Secondary Seals : Viton, EPDM, PTFE
  • Metal Parts : SS 316,
