Rubber Bellow Mechanical Seals

Microseals are one of the best leading rubber bellow mechanical seal manufacturers, provide a best rubber bellow type mechanical seal. Existence one of the top rubber bellow mechanical seal suppliers, manufacturers and exporter of the multiple types of rubber bellow seal and rubber bellow mechanical seals, we offer the rubber bellow seal manufactured and designed of extremely high quality raw materials.

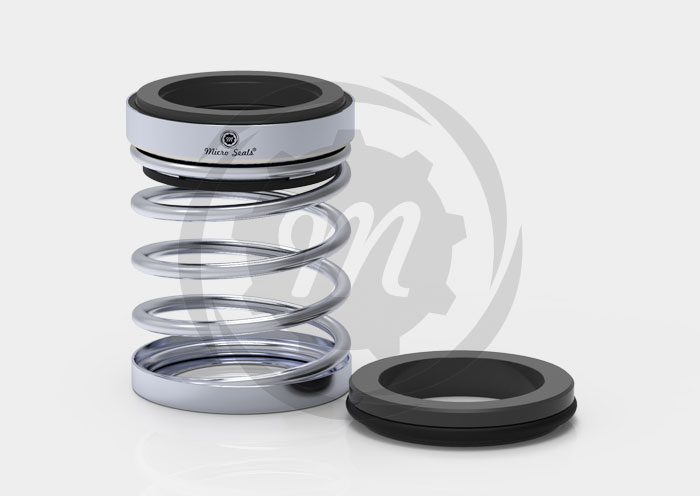

Elastomer Bellow Seals
(TYPE RB21 )

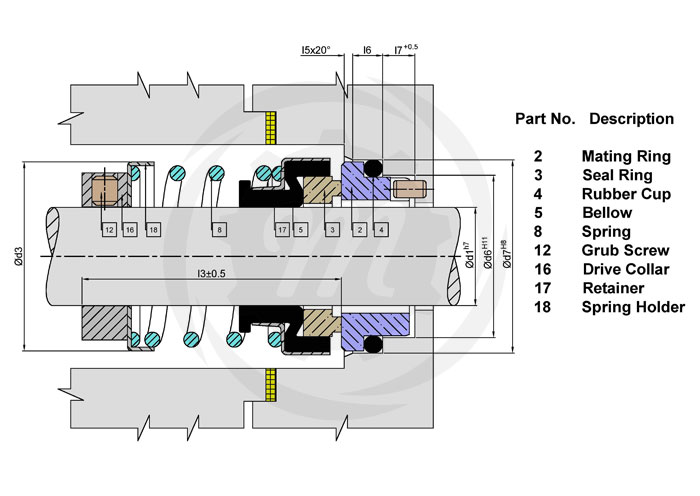

"Rubber Bellow Mechanical Seals" are most commonly used rubber bellow seal, Due to its compact design it can be easily mounted. These has a unique rubber bellow secondary seal, which provides a high degree of axialflexibiiityto compensate for lack of concentricity of the shaft & misalignment & wear due to thrust movement of the shaft.

pulp and paper, pool and spa, water, food processing, wastewater treatment, and other general applications.

  • Pressure :10 bars (Max)
  • Temperature : 40℃ to 205℃
  • Speed : upto 2500 RPM
  • Sizes : 10 mm to 100mm
  • Seal Ring Face : Carbon, SiC, TC, Ceramic
  • Seal Ring Face : SiC, TC
  • Secondary Seals : EPDM, Viton, Buna-N
  • Metal Parts : SS 316,
